Framethrower for Amiga 500 and Amiga 2000.
Framethrower is a video output solution designed to be used together with a PiStorm accelerator. It works as a scandoubler, capturing the native 15kHz Amiga signal and automatically switching between OCS/ECS and RTG screen modes. By combining both signal types into a single output, Framethrower eliminates the need to switch between different video sources. All video is delivered directly through the Raspberry Pi HDMI connector.

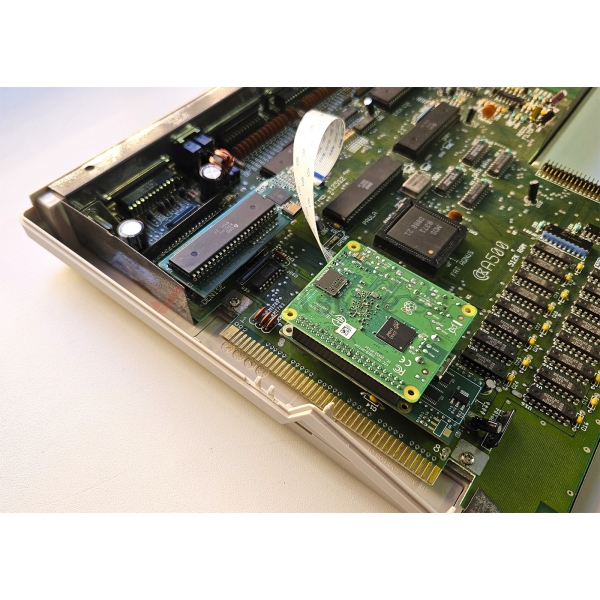

Framethrower requires a PiStorm installed in your Amiga. PiStorm for Amiga 500 and Amiga 2000 is available here. The device is plug and play when used with the SD card configuration (optional). The SD card includes all required configuration for both the Raspberry Pi and Framethrower, and a pre-configured installation of licensed AmigaOS 3.1 or 3.2.3, and freely distributable applications and games. The necessary FFC ribbon cable for connection to the Raspberry Pi 3A+ is included.
If you want to add 512 or 1MB of CHIP RAM, please check our Trapdoor Memory Expansions for Amiga 500 and Amiga 500 Plus. They are the perfect complement to the PiStorm.

Features:
• Scandoubler for native Amiga 15kHz video signal
• Automatic switching between OCS/ECS and RTG screen modes
• Single video output through the Raspberry Pi HDMI connector
• Eliminates the need for multiple video cables or input switching
• Clean and stable image on modern HDMI displays
• Scandoubling of non-interlaced Lo-Res and Hi-Res modes
• Deinterlacing of interlaced Lo-Res and Hi-Res modes
• PAL and NTSC
• Amiga audio passthrough is not currently available
• Pre-configured 64GB SD card with licensed AmigaOS and legal applications & games
• Michal Schulz Emu68 software
• Assembled in AMIGAstore®
Available options:
• Pre-configured 64GB SD card with licensed AmigaOS and legal applications & games
Compatibility:
• Amiga 500 and Amiga 2000 (fully supported)
• Amiga 500+ (community-reported compatibility, not officially verified)
Requirements:
• Amiga 500 or Amiga 2000
• PiStorm accelerator with Raspberry Pi
• Kickstart 2.05, 3.0, 3.1, 3.1.4, 3.2, 3.2.1, 3.2.2 (+Hotfix), or 3.2.3
Product includes:

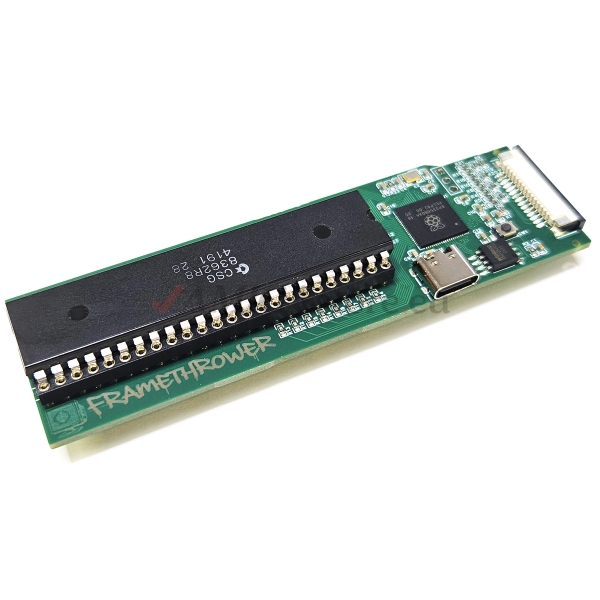

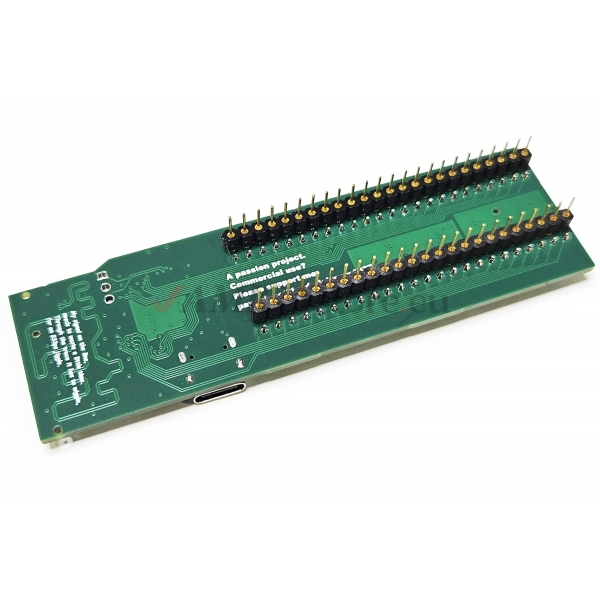

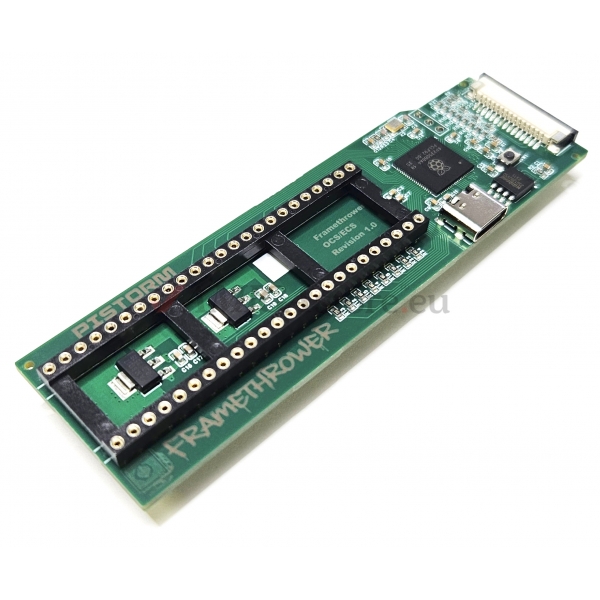

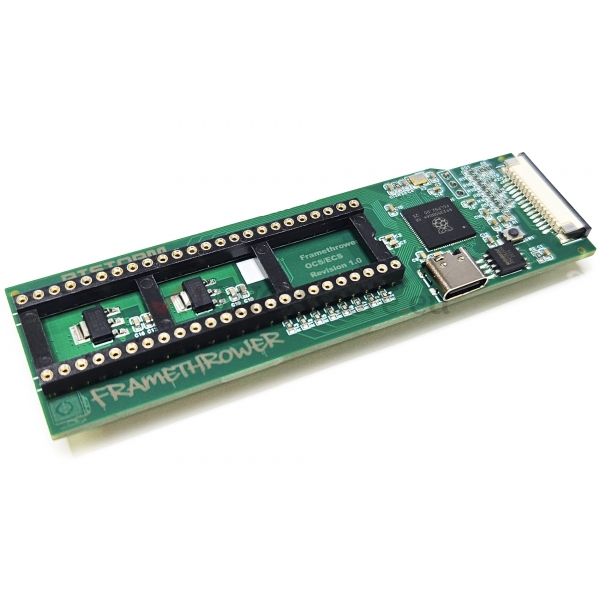

• Framethrower board

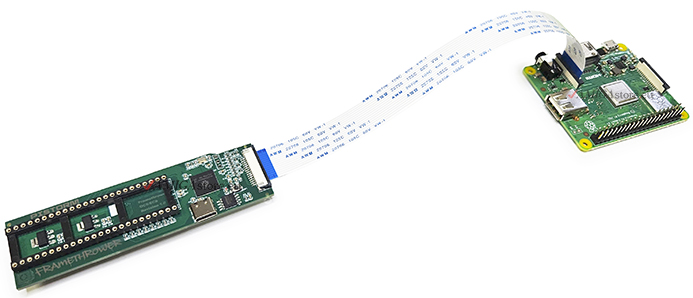

• FFC ribbon cable for connection to the Raspberry Pi 3A+
Warranty: three years. Installation manual: not included.
© Claude Schwarz. Manufactured in-house by AMIGAstore.eu™.
