Replacement membranes for original Commodore Amiga keyboards. Designed to replace worn, damaged or faulty originals.

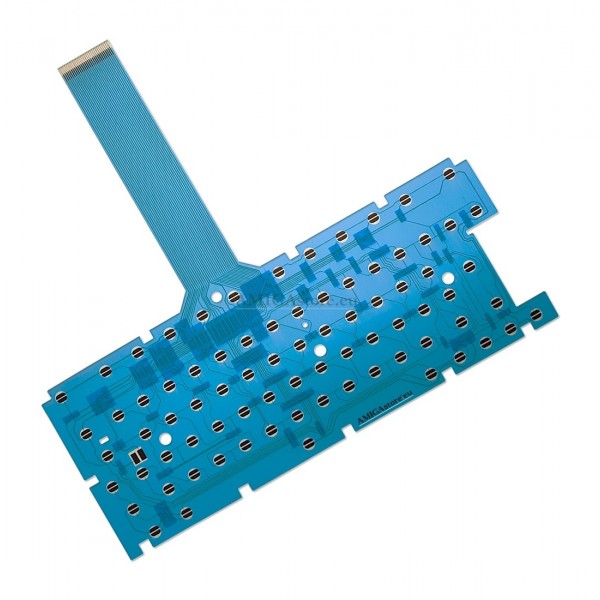

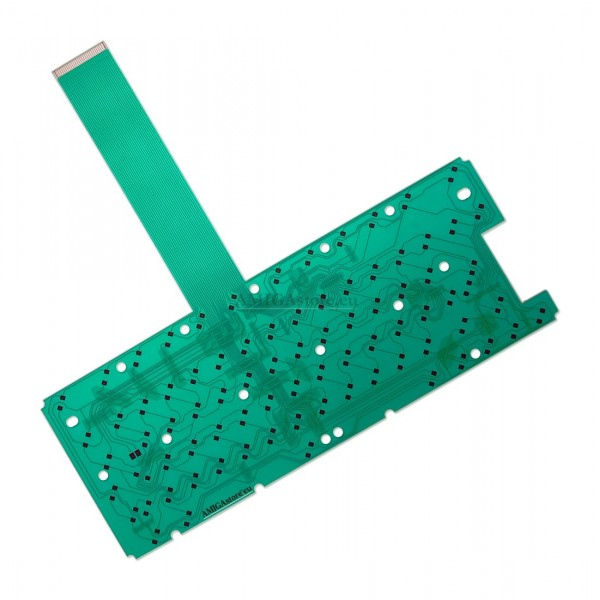

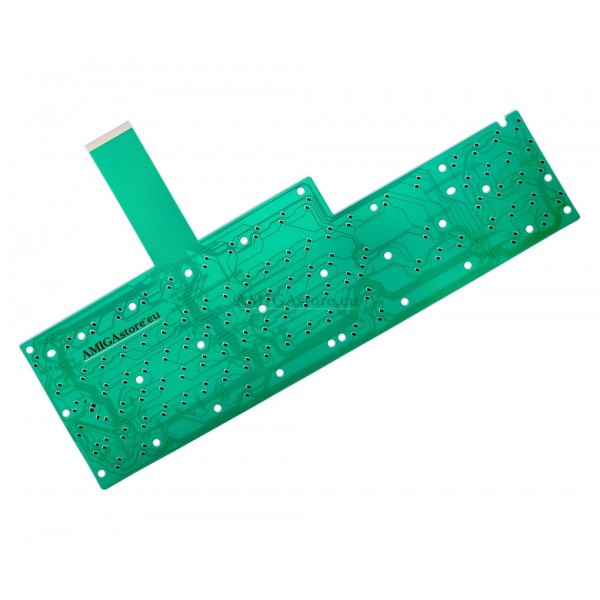

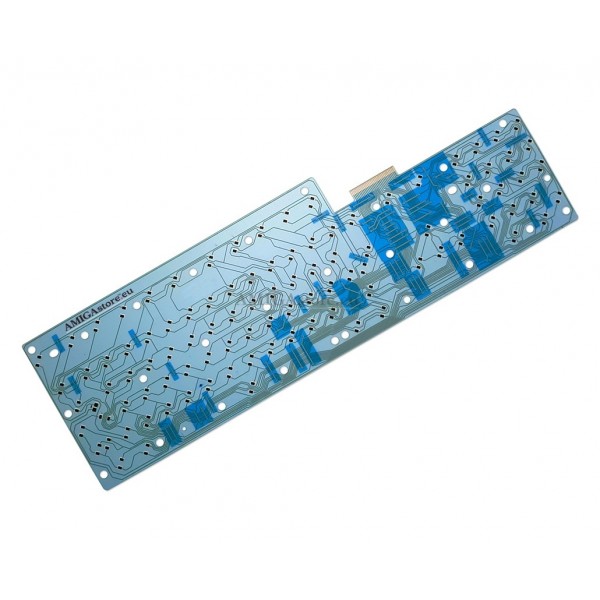

The photographs below illustrate some of the different keyboard membrane designs used in Amiga computers. Please refer to the compatibility information and original part numbers below to identify the correct replacement for your keyboard.
![]() |
![]() |
![]() |
![]() |
Available versions and compatibility:
• Amiga 500 / 500+ (A619A, Long Enter, one ribbon connector) and Amiga 4000 (*): replaces Mitsumi 56 A619A
• Amiga 500 / 500+ (A619B, Short Enter, one ribbon connector) and Amiga 4000 (*): replaces Mitsumi 56 A619B
• Amiga 600 Blue: replaces NWT F-1 8770-0056 REV. E and NWT F-2 8770-0056 REV. E
• Amiga 600 Green: replaces Mitsumi 56C47B and 56C471B (also marked A300-B)
• Amiga 1200: replaces Mitsumi 56C774A (A1200-A). Also compatible with Micronik A1200 keyboards
Important: check compatibility and the original part number before ordering.
Amiga 500 and 500+ computers were manufactured with different keyboard types. The A619A (Long Enter) and A619B (Short Enter) versions are designed for Mitsumi keyboards with a single ribbon connector. Keyboards with two ribbon connectors are not supported. Make sure to select the correct version (A619A or A619B).
(*) Some Commodore Amiga 4000 and Escom Amiga 4000T keyboards, featuring individual springs beneath the keys, also use membranes compatible with the Amiga 500 versions.
For the Amiga 600, select the blue or green version according to the type originally installed.
2-year warranty. Manual not included.
