Framethrower 600

For Amiga 600 with PiStorm. Framethrower is a video output solution that works as a scandoubler, capturing the native 15kHz signal and automatically switching between OCS/ECS and RTG screen modes. Framethrower eliminates the need for multiple video outputs by providing both modes through the Raspberry Pi HDMI connector.

More details

Reference:
Framethrower_600
Quantity:
Availability:
In stock

38,95 € tax incl.

Framethrower for Amiga 600.

Framethrower is a video output solution designed to be used together with a PiStorm accelerator. It works as a scandoubler, capturing the native 15kHz Amiga signal and automatically switching between OCS/ECS and RTG screen modes. By combining both signal types into a single output, Framethrower eliminates the need to switch between different video sources. All video is delivered directly through the Raspberry Pi HDMI connector.

Framethrower requires a PiStorm with a Raspberry Pi installed in your Amiga. The PiStorm solution for Amiga 600 is available here. The device is plug and play when used with the SD card configuration (optional). The SD card includes all required configuration for both the Raspberry Pi and Framethrower, and a pre-configured installation of licensed AmigaOS 3.1 or 3.2.3, and freely distributable applications and games. The necessary FFC ribbon cable for connection to the Raspberry Pi is included.

If you want to add 1MB of CHIP RAM, please check our Trapdoor Memory Expansion for Amiga 600. It is the perfect complement to the PiStorm.

Framethrower 600 - AMIGAstore.eu


Features:

• Scandoubler for native Amiga 15kHz video signal
• Automatic switching between OCS/ECS and RTG screen modes
• Single video output through the Raspberry Pi HDMI connector
• Eliminates the need for multiple video cables or input switching
• Clean and stable image on modern HDMI displays
• Scandoubling of non-interlaced Lo-Res and Hi-Res modes
• Deinterlacing of interlaced Lo-Res and Hi-Res modes
• PAL and NTSC
• Amiga audio passthrough is not currently available

• Pre-configured 64GB SD card with licensed AmigaOS and legal applications & games
• Michal Schulz Emu68 software
• Assembled in AMIGAstore®

Available options:

• Pre-configured 64GB SD card with licensed AmigaOS and legal applications & games

Compatibility:

• Amiga 600 computer

Requirements:

• Amiga 600 computer
• PiStorm accelerator with a Raspberry Pi installed (PiStorm 600 or PiStorm16)
• Kickstart 2.05, 3.0, 3.1, 3.1.4, 3.2, 3.2.1, 3.2.2 (+Hotfix), or 3.2.3

Product includes:

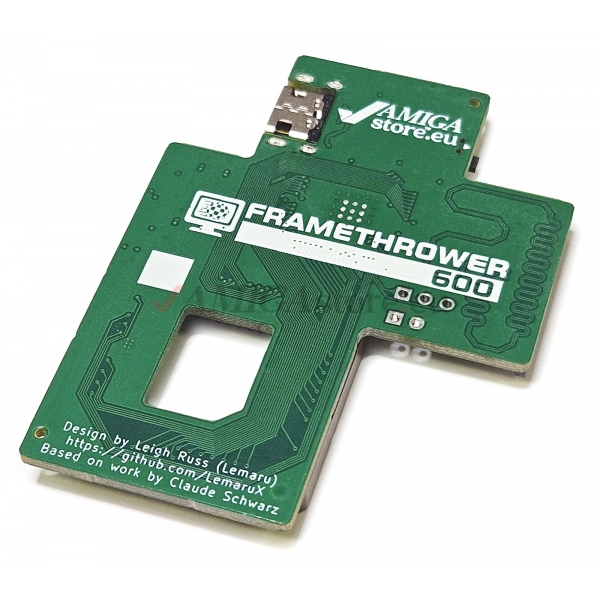

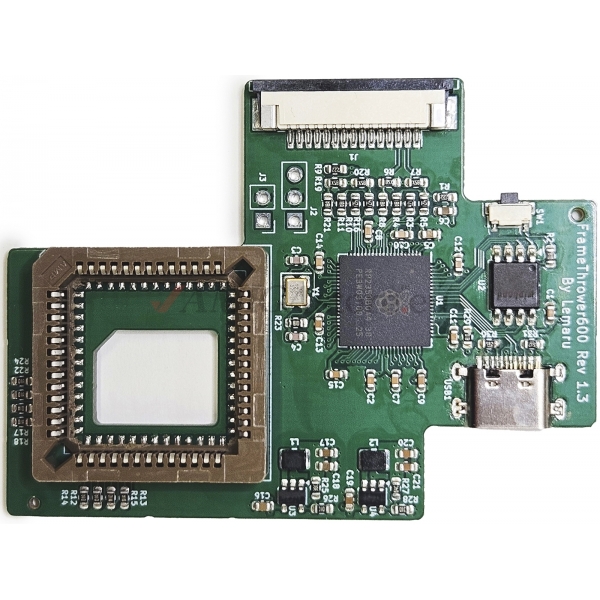

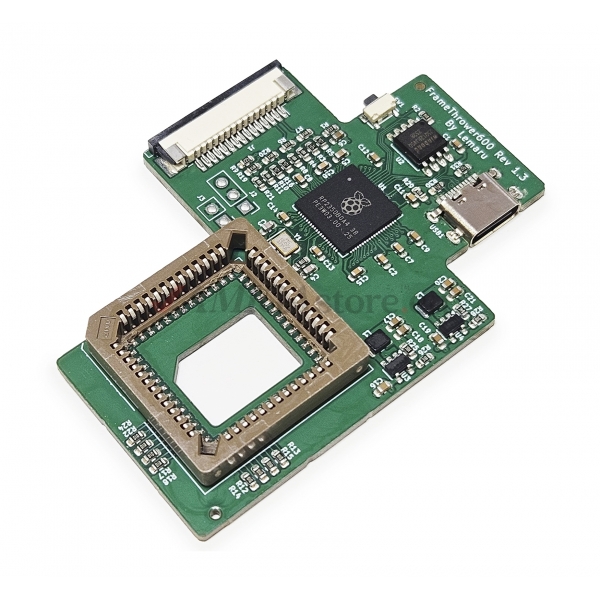

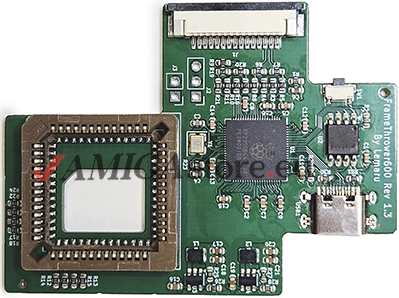

• Framethrower board
• FFC ribbon cable for connection to the Raspberry Pi 3A+ or PiStorm16

Warranty: two years. Installation manual: not included.

© Claude Schwarz. Manufactured in-house by AMIGAstore.eu™.
